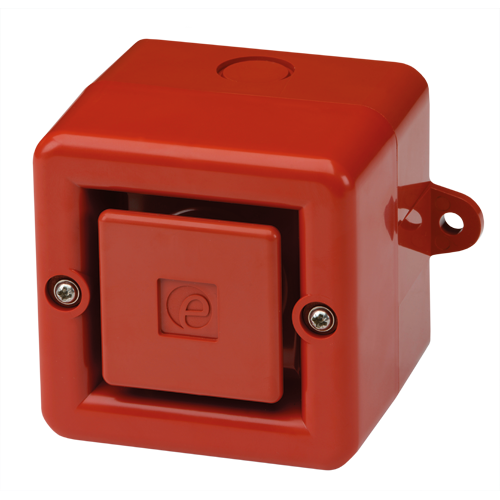

A100 Alarm Sounder

The A100 is a compact, high output, 104dB(A) alarm sounder. Low current consumption and high SPL in a robust fire retardant housing ensure the A100 is suitable for all general signalling applications including fire, security and process control.



Specification


Maximum output: 104dB(A) @ 1 metre [95dB(A) @ 10ft/3m]
Nominal output: 100dB(A) @ 1m +/- 3dB - Tone 2 [91dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 100dB(A);
Min. 90dB(A) - Tone 2
Effective range: 32m/105ft @ 1KHz
Voltages DC: 24V dc (10-30V dc);
48V dc (35-60V dc)
[DC units can use 24V ac for single stage applications.]
Voltages AC: 24V ac; 115V ac; 230V ac
Stage switching: Negative
Reverse polarity stage switching on DC units.
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Cable entries: 3 x M20 clearance gland entries in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13 to +131°F]
Storage temp: -40 to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 0.26kg/0.57lbs AC:0.37kg/0.81lbs

Part Codes

Version: Part code:
24V dc A100DC24[x]
48V dc A100DC48[x]
24V ac A100AC24[x]
115V ac A100AC115[x]
230V ac A100AC230[x]
[x] = Housing colour: G: Grey R: Red W: White
Suffix part number with ‘-P’ for programmable, 4 stage, 45 tone version (not available with UL approval).
Suffix part number with ‘-UL’ for UL approved version.
Please note UL approved version does not have mounting lugs

Alarm sounder

Version: Voltage: Current:
24V dc   10-30V dc 25mA*
48V dc   35-60V dc 50mA*
24V ac 50/60Hz +/-10% 40mA
115V ac 50/60Hz +/-10% 20mA
230V ac 50/60Hz +/-10% 15mA

* current at nominal voltage on Tone 2

Tone Table

Stage 1 WAV file Frequency Description. (Stg 2 (Stg 3
T 1  ↓ 340 Hz Continuous T 2 T 5
T 2  ↓ 800/1000Hz @ 0.25 sec Alternating T 17 T 5
T 3  ↓ 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5
T 4  ↓ 800/1000Hz @ 1Hz Sweeping T 6 T 5
T 5  ↓ 2400Hz Continuous T 3 T 20
T 6  ↓ 2400/2900Hz @ 7Hz Sweeping T 7 T 5
T 7  ↓ 2400/2900Hz @ 1Hz Sweeping T 10 T 5
T 8  ↓ 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5
T 9  ↓ 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 15 T 2
T 10  ↓ 2400/2900Hz @ 2Hz Alternating T 7 T 5
T 11  ↓ 1000Hz @ 1Hz Intermittent T 2 T 5
T 12  ↓ 800/1000Hz @ 0.875Hz Alternating T 4 T 5
T 13  ↓ 2400Hz @ 1Hz Intermittent T 15 T 5
T 14  ↓ 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5
T 15  ↓ 800Hz Continuous T 2 T 5
T 16  ↓ 660Hz 150mS on, 150mS off Intermittent T 18 T 5
T 17  ↓ 544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 2 T 27
T 18  ↓ 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5
T 19  ↓ 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5
T 20  ↓ 660Hz Continuous T 2 T 5
T 21  ↓ 554Hz/440Hz @ 1Hz Alternating T 2 T 5
T 22  ↓ 544Hz @ 0.875 sec. Intermittent T 2 T 5
T 23  ↓ 800Hz @ 2Hz Intermittent T 6 T 5
T 24  ↓ 800/1000Hz @ 50Hz Sweeping T 29 T 5
T 25  ↓ 2400/2900Hz @ 50Hz Sweeping T 29 T 5
T 26  ↓ Bell T 2 T 15
T 27  ↓ 554Hz Continuous T 26 T 5
T 28  ↓ 440Hz Continuous T 2 T 5
T 29  ↓ 800/1000Hz @ 7Hz Sweeping T 7 T 5
T 30  ↓ 300Hz Continuous T 2 T 5
T 31  ↓ 660/1200Hz @ 1Hz Sweeping T 26 T 5
T 32  ↓ Two T chime. T 26 T 15
Country specific or custom tone configurations and alarm frequencies are available upon request.
