E2xC1LD2F Ex E2S Vietnam Loa báo và đen Led_Không tia lửa_ Combination Alarm Horn & LED Beacon
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Heavy Inductrial, Marine Hàng Hải
Hotline
0859200531<div class="row row-break" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8 relative" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px; position: relative;">
<div class="approval-icons flash-hazardous-area-signalling" style="border-radius: 0px; border-left: 20px solid rgb(238, 49, 35); padding-left: 20px; background-color: rgb(255, 255, 255); padding-bottom: 8px; z-index: -100;"><img alt="Ul" src="http://www.e2s.com/system/1/product_selectables/icons/000/000/026/26/c2207a105/original/ul.png" style="border:0px; height:30px; margin-right:10px; margin-top:8px; max-width:100%; vertical-align:middle" /> <img alt="Iecex-approval" src="http://www.e2s.com/system/1/product_selectables/icons/000/000/015/15/cce3aa928/original/IECEx-Approval.png" style="border:0px; height:30px; margin-right:10px; margin-top:8px; max-width:100%; vertical-align:middle" /> <img alt="Atex-approval" src="http://www.e2s.com/system/1/product_selectables/icons/000/000/016/16/1800db439/original/ATEX-Approval.png" style="border:0px; height:30px; margin-right:10px; margin-top:8px; max-width:100%; vertical-align:middle" /> <img alt="Culs-approval" src="http://www.e2s.com/system/1/product_selectables/icons/000/000/017/17/b2796858e/original/cULs-Approval.png" style="border:0px; height:30px; margin-right:10px; margin-top:8px; max-width:100%; vertical-align:middle" /> <img alt="Ce-approval" src="http://www.e2s.com/system/1/product_selectables/icons/000/000/014/14/1e6981051/original/CE-Approval.png" style="border:0px; height:30px; margin-right:10px; margin-top:8px; max-width:100%; vertical-align:middle" /></div>
<div class="sku" style="border-radius: 0px; position: absolute; top: 15px; right: 20px; color: rgb(67, 71, 74); font-weight: bold;">1-34-016</div>
</div>
</div>
<div class="row row-break relative" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; position: relative; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px;">
<div class="back-hazardous-area-signalling request" id="request" style="border-radius: 0px; background-color: rgb(238, 49, 35); color: rgb(255, 255, 255); padding: 10px 20px; font-weight: bold;"><a class="rfq-show" href="http://e2s-vietnam.com/" style="text-decoration-line: none; color: white !important;">Specify Options & Request Quote</a><a class="rfq-help" href="http://www.e2s.com/rfq-help" style="text-decoration-line: none; float: right; position: relative; top: -3px; color: white !important;"><img alt="Question" src="http://www.e2s.com/system/1/assets/files/000/000/667/667/477772d9c/original/question.png" style="border-style:initial; border-width:0px; height:auto; max-width:100%; vertical-align:middle" /></a></div>
</div>
</div>
<div class="row row-break" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px;">
<div class="box description" style="border-radius: 0px; background-color: rgb(255, 255, 255); padding: 10px 20px;">
<div style="border-radius: 0px; margin: 0px; padding: 0px; border: 0px;">

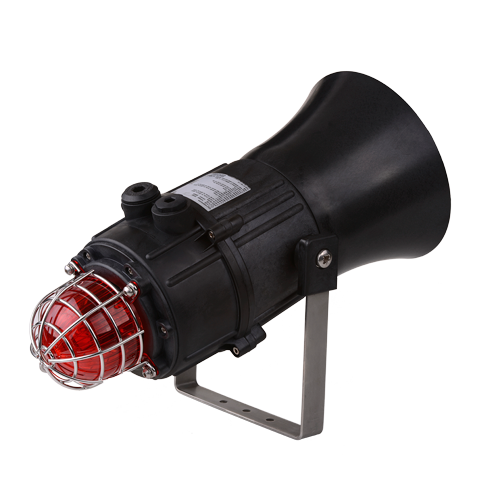

<h1>E2xC1LD2F Combination Alarm Horn & LED Beacon</h1>
<h2>The hazardous location E2xC1LD2F combined alarm sounder and LED beacon/status light is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.</h2>
<div class="body" style="border-radius: 0px;">
<p>The E2xC1LD2F features sound level ouputs of up to 116dB(A) at 1 metre with a choice of 45 alarm tones and 3 remotely selectable stages. The LED beacon contains an array of 4 high output, multi-function L.E.D.s. with a total of 7 modes of operation - 5 flashing modes and 2 steady modes for use in indicator / status applications. <br />
The E2x range features enclosures manufactured from lightweight, corrosion proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.</p>
</div>
</div>
</div>
</div>
</div>
<div class="row row-break" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px;">
<div class="specification" style="border-radius: 0px; padding: 10px 20px; background-color: rgb(208, 210, 210); font-size: 14px;">
<h4>Specification</h4>
<table style="background-color:transparent; border-collapse:collapse; border-spacing:0px; font-size:13px; margin-top:0px; max-width:100%; width:580px">
<thead>
<tr>
<th colspan="2" style="text-align:left"> </th>
</tr>
</thead>
<tbody>
<tr>
<td colspan="2" style="vertical-align:top"><strong>Alarm Horn Sounder:</strong></td>
</tr>
<tr>
<td style="vertical-align:top">Maximum output:</td>
<td style="vertical-align:top">116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]</td>
</tr>
<tr>
<td style="vertical-align:top">Nominal output:</td>
<td style="vertical-align:top">113dB(A) @ 1m +/- 3dB - Tone 2 [104dB(A) @ 10ft/3m]</td>
</tr>
<tr>
<td style="vertical-align:top">No. of tones:</td>
<td style="vertical-align:top">45 (UKOOA/PFEER compliant)</td>
</tr>
<tr>
<td style="vertical-align:top">No. of stages:</td>
<td style="vertical-align:top">3</td>
</tr>
<tr>
<td style="vertical-align:top">Volume control:</td>
<td style="vertical-align:top">Max. 113dB(A) Min. 105dB(A) - Tone 2</td>
</tr>
<tr>
<td style="vertical-align:top">Effective range:</td>
<td style="vertical-align:top">100m/328ft @ 1KHz</td>
</tr>
<tr>
<td colspan="2" style="vertical-align:top"><strong>LED Beacon / Status Light:</strong></td>
</tr>
<tr>
<td style="vertical-align:top">Source:</td>
<td style="vertical-align:top">Array of 4 x High Power Cree® LED's</td>
</tr>
<tr>
<td style="vertical-align:top">Modes:</td>
<td style="vertical-align:top">1Hz flash (60 fpm)<br />
1.5Hz flash (90 fpm)<br />
2Hz flash (120 fpm)<br />
Double strike flash<br />
Triple strike flash<br />
High Power Steady<br />
Low Power Steady</td>
</tr>
<tr>
<td style="vertical-align:top">Eff. Intensity cd:</td>
<td style="vertical-align:top">87 cd - High Power Steady</td>
</tr>
<tr>
<td style="vertical-align:top">Eff. Intensity cd:</td>
<td style="vertical-align:top">160 cd - 1Hz flash</td>
</tr>
<tr>
<td style="vertical-align:top">Voltages:</td>
<td style="vertical-align:top">24V dc; 115V ac; 230V ac</td>
</tr>
<tr>
<td colspan="2" style="vertical-align:top"><strong>General:</strong></td>
</tr>
<tr>
<td style="vertical-align:top">Voltages:</td>
<td style="vertical-align:top">24vdc; 48vdc; 115vac; 230vac</td>
</tr>
<tr>
<td style="vertical-align:top">Ingress protection:</td>
<td style="vertical-align:top">IP rating per EN60079-0:IP64<br />
IP rating per EN60529:IP66<br />
Type rating per UL50E/NEMA250:4/4X/13</td>
</tr>
<tr>
<td style="vertical-align:top">Enclosure material:</td>
<td style="vertical-align:top">UL94V0 PPS & ABS</td>
</tr>
<tr>
<td style="vertical-align:top">Lens material:</td>
<td style="vertical-align:top">Borosilicate glass dome with PC prismatic lens cover.</td>
</tr>
<tr>
<td style="vertical-align:top">Guard:</td>
<td style="vertical-align:top">Stainless Steel dome guard as standard</td>
</tr>
<tr>
<td style="vertical-align:top">Cable entries:</td>
<td style="vertical-align:top">Dual M20x1.5 or 1/2"NPT</td>
</tr>
<tr>
<td style="vertical-align:top">Terminals:</td>
<td style="vertical-align:top">0.5 - 2.5mm² (20-14 AWG)</td>
</tr>
<tr>
<td style="vertical-align:top">Line monitoring:</td>
<td style="vertical-align:top">Blocking diode included, EOL can be factory fitted</td>
</tr>
<tr>
<td style="vertical-align:top">LED life:</td>
<td style="vertical-align:top">60,000 hours</td>
</tr>
<tr>
<td style="vertical-align:top">Operating temp:</td>
<td style="vertical-align:top">-20 to +55°C [-4° to +131°F]</td>
</tr>
<tr>
<td style="vertical-align:top">Storage temp:</td>
<td style="vertical-align:top">-40 to +70°C [-40° to +158°F]</td>
</tr>
<tr>
<td style="vertical-align:top">Relative humidity:</td>
<td style="vertical-align:top">90% at 20°C [68°F]</td>
</tr>
<tr>
<td style="vertical-align:top">Weight:</td>
<td style="vertical-align:top">DC: 3.00Kg/6.6Ibs AC: 3.50kg/7.7Ibs</td>
</tr>
<tr>
<td colspan="2" style="vertical-align:top">All candela data is representative of performance with clear lens at optimum voltage.</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<div class="row row-break" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px;">
<div class="current-consumption specification" style="border-radius: 0px; padding: 10px 20px; background-color: rgb(208, 210, 210); font-size: 14px;">
<h4>Current Consumption</h4>
<table style="background-color:transparent; border-collapse:collapse; border-spacing:0px; font-size:13px; margin-top:0px; max-width:100%; width:580px">
<thead>
<tr>
<th style="text-align:left"> </th>
<th colspan="2" style="text-align:left"><strong>Alarm Horn</strong></th>
<th colspan="4" style="text-align:left"><strong>LED Beacon</strong></th>
</tr>
</thead>
<tbody>
<tr>
<td style="vertical-align:top"><strong>Version:</strong></td>
<td style="vertical-align:top"><strong>Voltage:</strong></td>
<td style="vertical-align:top"><strong>Current:</strong></td>
<td style="vertical-align:top"><strong>Voltage:</strong></td>
<td style="vertical-align:top"><strong>Steady<br />
High<br />
Power:</strong></td>
<td style="vertical-align:top"><strong>Steady<br />
Low<br />
Power:</strong></td>
<td style="vertical-align:top"><strong>Flashing<br />
1Hz:</strong></td>
</tr>
<tr>
<td style="vertical-align:top">24V dc</td>
<td style="vertical-align:top">+/-25%</td>
<td style="vertical-align:top">265mA</td>
<td style="vertical-align:top">18-54V</td>
<td style="vertical-align:top">240mA</td>
<td style="vertical-align:top">134mA</td>
<td style="vertical-align:top">110mA</td>
</tr>
<tr>
<td style="vertical-align:top">115V ac 50/60Hz</td>
<td style="vertical-align:top">+/-10%</td>
<td style="vertical-align:top">110mA</td>
<td style="vertical-align:top">+/-10%</td>
<td style="vertical-align:top">95mA</td>
<td style="vertical-align:top">78mA</td>
<td style="vertical-align:top">90mA</td>
</tr>
<tr>
<td style="vertical-align:top">230V ac 50/60Hz</td>
<td style="vertical-align:top">+/-10%</td>
<td style="vertical-align:top">56mA</td>
<td style="vertical-align:top">+/-10%</td>
<td style="vertical-align:top">48mA</td>
<td style="vertical-align:top">37mA</td>
<td style="vertical-align:top">45mA</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<div class="row row-break" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px;">
<div class="part-codes specification" style="border-radius: 0px; background-color: rgb(208, 210, 210); padding: 10px 20px; font-size: 14px;">
<h4>Part Codes</h4>
<table style="background-color:transparent; border-collapse:collapse; border-spacing:0px; font-size:13px; margin-top:0px; max-width:100%; width:580px">
<thead>
<tr>
<th style="text-align:left"><strong>Part Code:</strong></th>
<th style="text-align:left"><strong>Ident.:</strong></th>
<th colspan="2" style="text-align:left"><strong>Description:</strong></th>
</tr>
</thead>
<tbody>
<tr>
<td style="vertical-align:top; white-space:nowrap">Product type:</td>
<td style="vertical-align:top">E2xC1LD2</td>
<td colspan="2" style="vertical-align:top">Combined alarm horn & LED beacon</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Type:</td>
<td style="vertical-align:top">F</td>
<td colspan="2" style="vertical-align:top">Flare re-entrant horn</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Voltage:</td>
<td style="vertical-align:top">AC115<br />
AC230<br />
DC024</td>
<td colspan="2" style="vertical-align:top">115V ac 50/60Hz<br />
230V ac 50/60Hz<br />
24V dc (20-28Vdc)</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Cable entries:[e]</td>
<td style="vertical-align:top">A<br />
B<br />
C</td>
<td colspan="2" style="vertical-align:top">M20x1.5 & ½” NPT<br />
M20x1.5 & M20x1.5<br />
½” NPT & ½” NPT</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Stopping plug material: [m]</td>
<td style="vertical-align:top">N</td>
<td colspan="2" style="vertical-align:top">Nylon</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Bracket & Guard: [s]</td>
<td style="vertical-align:top">1<br />
2</td>
<td colspan="2" style="vertical-align:top">304 (A2) Stainless Steel<br />
316 (A4) Stainless Steel</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Version: [v]</td>
<td style="vertical-align:top">A1</td>
<td colspan="2" style="vertical-align:top">UL, cULs, IECEx & ATEX</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Enclosure: [x]</td>
<td style="vertical-align:top">B</td>
<td colspan="2" style="vertical-align:top">Black</td>
</tr>
<tr>
<td style="vertical-align:top; white-space:nowrap">Lens colour: [y]</td>
<td style="vertical-align:top">A, B, C<br />
G, M, R<br />
Y</td>
<td colspan="2" style="vertical-align:top">Amber, Blue, Clear<br />
Green, Magenta, Red<br />
Yellow</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<div class="row row-break" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px;">
<div class="specification" style="border-radius: 0px; padding: 10px 20px; background-color: rgb(208, 210, 210); font-size: 14px;">
<h4>Coding</h4>
<ul>
<li>ATEX / IECEx certification<br />
II 3G Ex nA IIC Gc T3 Ta -20°C to +55°C<br />
II 3D Ex tc IIIC Dc T105°C Ta -20°C to +55°C<br />
II 3D Ex tc IIIC Dc T90°C Ta -20°C to +40C</li>
<li>NEC Class / Zone ratings US<br />
Class I Zone 2 AEx nA IIC Gc T3 Ta -20°C to +55°C<br />
Zone 22 AEx tc IIIC Dc T105°C Ta -20°C to +55°C<br />
Zone 22 AEx tc IIIC Dc T90°C Ta -20°C to +55°C</li>
<li>CEC Class / Zone ratings Canada<br />
Ex nA IIC Gc T3B Ta -20°C to +55°C<br />
Ex nA IIC Gc T3C Ta -20°C to +40°C<br />
Ex tc IIIC Dc T105°C Ta -20°C to +55°C<br />
Ex tc IIIC Dc T90°C Ta -20°C to +40°C</li>
<li>NEC & CEC Class / Division Ratings for US / Canada<br />
Class I, Div 2, ABCD T3C Ta -20°C to +55°C<br />
Class II, Div 2, FG T4A Ta -20°C to +55°C<br />
Class II, Div 2, FG T5 Ta -20°C to +40°C<br />
Class III, Div 1&2 Ta -20°C to +55°C</li>
</ul>
</div>
</div>
</div>
<div class="row row-break" style="border-radius: 0px; margin-left: -20px; margin-top: 20px; font-family: news-gothic-std, "helvetica nueue", Arial, sans-serif; font-size: 15px; background-color: rgb(246, 246, 246);">
<div class="span8" style="border-radius: 0px; float: left; min-height: 1px; margin-left: 20px; width: 830px;">
<div class="specification tone-table" style="border-radius: 0px; padding: 10px 20px; background-color: rgb(208, 210, 210); font-size: 14px;">
<h4>Tone Table</h4>
<table style="background-color:transparent; border-collapse:collapse; border-spacing:0px; font-size:13px; margin-top:0px; max-width:100%; width:580px">
<thead>
<tr>
<th style="text-align:left"><strong>Stage 1</strong></th>
<th style="text-align:left"><strong>WAV file</strong></th>
<th style="text-align:left"><strong>Frequency Description.</strong></th>
<th style="text-align:left"><strong>Stage 2</strong></th>
<th style="text-align:left"><strong>Stage 3</strong></th>
</tr>
</thead>
<tbody>
<tr>
<td style="vertical-align:top">T 1</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/415/415/246615edd/original/TF001.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">340 Hz Continuous</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800/1000Hz @ 0.25 sec Alternating</td>
<td style="vertical-align:top">T 17</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 3</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 4</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800/1000Hz @ 1Hz Sweeping</td>
<td style="vertical-align:top">T 6</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 5</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">2400Hz Continuous</td>
<td style="vertical-align:top">T 3</td>
<td style="vertical-align:top">T 20</td>
</tr>
<tr>
<td style="vertical-align:top">T 6</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">2400/2900Hz @ 7Hz Sweeping</td>
<td style="vertical-align:top">T 7</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 7</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">2400/2900Hz @ 1Hz Sweeping</td>
<td style="vertical-align:top">T 10</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 8</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">500/1200/500Hz @ 0.3Hz Sweeping</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 9</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.</td>
<td style="vertical-align:top">T 15</td>
<td style="vertical-align:top">T 2</td>
</tr>
<tr>
<td style="vertical-align:top">T 10</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">2400/2900Hz @ 2Hz Alternating</td>
<td style="vertical-align:top">T 7</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 11</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">1000Hz @ 1Hz Intermittent</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 12</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800/1000Hz @ 0.875Hz Alternating</td>
<td style="vertical-align:top">T 4</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 13</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">2400Hz @ 1Hz Intermittent</td>
<td style="vertical-align:top">T 15</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 14</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800Hz 0.25sec on, 1 sec off Intermittent</td>
<td style="vertical-align:top">T 4</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 15</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800Hz Continuous</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 16</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">660Hz 150mS on, 150mS off Intermittent</td>
<td style="vertical-align:top">T 18</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 17</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">544Hz (100mS)/440Hz (400mS) - NF S 32-001</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 27</td>
</tr>
<tr>
<td style="vertical-align:top">T 18</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">660Hz 1.8sec on, 1.8sec off Intermittent</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 19</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 20</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">660Hz Continuous</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 21</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">554Hz/440Hz @ 1Hz Alternating</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 22</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">544Hz @ 0.875 sec. Intermittent</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 23</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800Hz @ 2Hz Intermittent</td>
<td style="vertical-align:top">T 6</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 24</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800/1000Hz @ 50Hz Sweeping</td>
<td style="vertical-align:top">T 29</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 25</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">2400/2900Hz @ 50Hz Sweeping</td>
<td style="vertical-align:top">T 29</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 26</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">Bell</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 15</td>
</tr>
<tr>
<td style="vertical-align:top">T 27</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">554Hz Continuous</td>
<td style="vertical-align:top">T 26</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 28</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">440Hz Continuous</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 29</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800/1000Hz @ 7Hz Sweeping</td>
<td style="vertical-align:top">T 7</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 30</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">300Hz Continuous</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 31</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">660/1200Hz @ 1Hz Sweeping</td>
<td style="vertical-align:top">T 26</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 32</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/396/396/d64fbc9d0/original/TF032.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">Two T chime.</td>
<td style="vertical-align:top">T 26</td>
<td style="vertical-align:top">T 15</td>
</tr>
<tr>
<td style="vertical-align:top">T 33</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">745Hz @ 1Hz Intermittent</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 34</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">1000 & 2000Hz @ 0.5 sec Alternating - Singapore</td>
<td style="vertical-align:top">T 38</td>
<td style="vertical-align:top">T 45</td>
</tr>
<tr>
<td style="vertical-align:top">T 35</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">420Hz @ 0.625 sec Australian Alert</td>
<td style="vertical-align:top">T 36</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 36</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">500-1200Hz 3.75sec /0.25sec. Australian Evac.</td>
<td style="vertical-align:top">T 35</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 37</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">1000Hz Continuous - PFEER Toxic Gas</td>
<td style="vertical-align:top">T 9</td>
<td style="vertical-align:top">T 45</td>
</tr>
<tr>
<td style="vertical-align:top">T 38</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">2000Hz Continuous</td>
<td style="vertical-align:top">T 34</td>
<td style="vertical-align:top">T 45</td>
</tr>
<tr>
<td style="vertical-align:top">T 39</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/401/401/e3954ab10/original/TF039.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">800Hz 0.25sec on, 1 sec off Intermittent</td>
<td style="vertical-align:top">T 23</td>
<td style="vertical-align:top">T 17</td>
</tr>
<tr>
<td style="vertical-align:top">T 40</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/403/403/88b145b84/original/TF040.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">544Hz (100mS)/440Hz (400mS) - NF S 32-001</td>
<td style="vertical-align:top">T 31</td>
<td style="vertical-align:top">T 27</td>
</tr>
<tr>
<td style="vertical-align:top">T 41</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">Motor Siren - slow rise to 1200 Hz</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 42</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">Motor Siren - slow rise to 800 Hz</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 43</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">1200 Hz Continuous</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 44</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">Motor Siren - slow rise to 2400 Hz</td>
<td style="vertical-align:top">T 2</td>
<td style="vertical-align:top">T 5</td>
</tr>
<tr>
<td style="vertical-align:top">T 45</td>
<td style="vertical-align:top"><a class="sound_play" href="http://e2s-vietnam.com/" style="color: rgb(238, 49, 35); text-decoration-line: none;"><img src="http://www.e2s.com/system/1/assets/files/000/000/615/615/27ce1c387/original/play.gif" style="border-style:initial; border-width:0px; height:auto; margin-right:10px; max-width:100%; position:relative; top:-2px; vertical-align:middle" /> </a><a class="download" href="http://www.e2s.com/system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV" style="color: rgb(85, 85, 85); text-decoration-line: none; position: relative; top: -2px;">↓</a></td>
<td style="vertical-align:top">1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm</td>
<td style="vertical-align:top">T 38</td>
<td style="vertical-align:top">T 34</td>
</tr>
<tr>
<td colspan="5" style="vertical-align:top">Country specific or custom tone configurations and alarm frequencies are available upon request.</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
