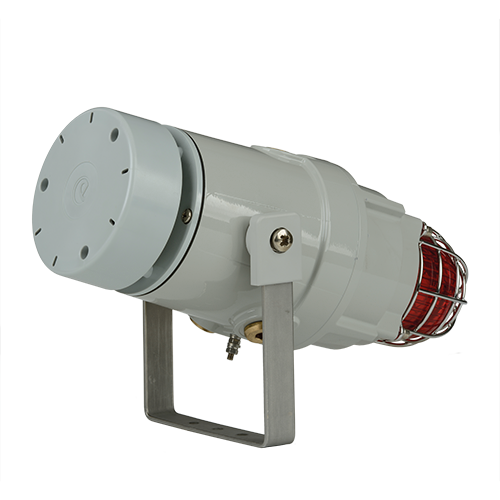

D1xC2X10R Radial Alarm Horn & Xenon Strobe

118dB(A) horn & 10 Joule Xenon. The D1xC2X10R is a high output alarm horn sounder with omni-directional radial horn combined with a 1,000,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xC2X10R is suitable for all Class I Division 1 & Zone 1 explosion proof signaling applications. The DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon).

The alarm horn & Xenon strobe allow simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently selectable. Each of the available 4 stage/channels can be remotely triggered e.g. via an external relay.

Specification


Alarm Horn:
Maximum output: 118dB(A) @ 1 metre [109dB(A) @ 10ft/3m]
Nominal output: 112dB(A) @ 1m +/- 3dB - Tone 8 [103dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A)
Effective range: 125m/410ft @ 1KHz
Supply Voltages: 24Vdc; 115Vac; 230Vac
Stage switching: DC units: negative or positive
AC units: common supply line
Strobe Beacon:
Energy: 10 Joules (10Ws)
Flash rates: Option 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90 fpm)
Option 3: Double Strike
Peak Candela: 1,000,000 cd - calculated from energy (J)
Effective Intensity: 500 cd - calculated from energy (J)
Peak Candela: 85,544 cd* - measured ref. to I.E.S.
Effective Intensity: 260 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life : Emissions are reduced to 70% after 5 million flashes
General:
Ingress protection: EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material: Marine grade aluminium LM6- copper free
Chromated & powder coated - corrosion proof
Colour: Red (RAL3000), Grey (RAL7038)
Cable entries: 1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Grounding stud: M5
Operating temp: 24Vdc & 115Vac: -40° to +70°C [-40° to +158°F]
230Vac: -40° to +55°C [-40° to +131°F]
Storage temp: -50° to +70°C [-58° to +158°F]
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 5.0kg/11.1lbs

Current Consumption

Voltage: Range: Alarm Horn Xenon Strobe Combined
24V dc 20-28Vdc 923mA 673mA 1596mA
115V ac 110-120Vac
50/60Hz		 267mA 247mA 514mA
230V ac 220-240Vac
50/60Hz		 159mA 120mA 279mA

Part Codes

Version: Part code:
Product type: D1xC2X10
Horn type: R Omni-directional radial horn
Voltage: DC024
AC115
AC230		 20-28V dc
110-120V ac
220-240V ac
Cable Entry Type:[e] A
B
C		 1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Adaptor/Stopping
plug material: [m]		 B
N
S		 Brass
Nickel Plated
Stainless Steel
Bracket/Guard material: [s] 1
2
3
4		 A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 Gas environments Class I/Zone1
Enclosure colour: [x] G
R		 Grey RAL7038
Red RAL3000
Lens colour: [y] A, B, C, G
M, R, Y		 Amber, Blue, Clear, Green
Magenta, Red, Yellow
Example: D1xC2X10RAC230 [e][m][s][v][x][y]
D1xC2X10RAC230AB1A1R/A
Ratings:
A1: Gas version
NEC / CEC: Class I Div 1 ABCD T5/T6 Ta -40°C to +55/+50°C
Class I Div 2 ABCD T5/T6 Ta -40°C to +55/+50°C
Class I Zone 1, 2 IIC T5/T6 Ta -40°C to +55/+50°C

Coding

  • A1: Gas version
    NEC / CEC:
    Class I Div 1 ABCD T5/T6 Ta -40°C to +55/+50°C
    Class I Div 2 ABCD T5/T6 Ta -40°C to +55/+50°C
    Class I Zone 1, 2 IIC T5/T6 Ta -40°C to +55/+50°C
  • Protection concept: Ex d / AEx d

Effective Candela lens colour factor


Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3 Stage 4
T1  ↓ 1000 Continuous PFEER Toxic Gas Any T2 T44
T2  ↓ 1200/500 @ 1Hz Sweeping DIN/PFEER P.T.A.P. Any T3 T44
T3  ↓ 1000 @ 0.5Hz (1s on, 1s off) Intermittent PFEER Gen. Alarm Any T2 T44
T4  ↓ 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s NF C 48-265 Any T24 T1
T5  ↓ 544(100mS)/440 (400mS) NF S 32-001 Any T19 T1
T6  ↓ 1500/500 - (0.5s on , 0.5s off) x3 + 1s gap AS4428 Any T44 T1
T7  ↓ 500-1500Hz Sweeping 2 sec on 1 sec off AS4428 Any T44 T1
T8  ↓ 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) NEN 2575 Any T24 T35
T9  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a Any T34 T1
T10  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a Any T34 T1
T11  ↓ 420(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal Any T1 T8
T12  ↓ 1000(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal Any T1 T8
T13  ↓ 422/775 (0.85 on, 0.5 off) x3 + 1s gap NFPA Temporal Any T1 T8
T14  ↓ 1000/2000 @ 1Hz - Singapore Any T3 T35
T15  ↓ 300 Continuous Any T24 T35
T16  ↓ 440 Continuous Any T24 T35
T17  ↓ 470 Continuous Any T24 T35
T18  ↓ 500 Continuous IMO code 2 (Low) Any T24 T35
T19  ↓ 554 Continuous Any T24 T35
T20  ↓ 660 Continuous Any T24 T35
T21  ↓ 800 Continuous IMO code 2 (High) Any T24 T35
T22  ↓ 1200 Continuous Any T24 T35
T23  ↓ 2000 Continuous Any T3 T35
T24  ↓ 2400 Continuous Any T20 T35
T25  ↓ 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent Any T44 T8
T26  ↓ 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent Any T44 T8
T27  ↓ 470 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T44 T8
T28  ↓ 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent Any T24 T8
T29  ↓ 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent Any T44 T8
T30  ↓ 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent Any T24 T8
T31  ↓ 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent Any T24 T8
T32  ↓ 745 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T33  ↓ 800 (0.25s on, 1.00s off) Intermittent Any T24 T8
T34  ↓ 800 @ 2Hz (0.25s on, 0.25s off) IMO code 3.a (High) Any T24 T8
T35  ↓ 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T36  ↓ 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T37  ↓ 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T24 T8
T38  ↓ 363/518 @ 1Hz (0.50s/0.50s) Alternating Any T8 T19
T39  ↓ 450/500 @ 2Hz (0.25s/0.25s) Alternating Any T8 T19
T40  ↓ 554/440 @ 1Hz (0.50s/0.50s) Alternating Any T24 T19
T41  ↓ 554/440 @ 0.65Hz (0.76s/0.76s) Alternating Any T8 T19
T42  ↓ 561/760 @ 0.83Hz (0.60s/0.60s) Alternating Any T8 T19
T43  ↓ 780/600 @ 0.96Hz (0.52s/0.52s) Alternating Any T8 T19
T44  ↓ 800/1000 @ 2Hz (0.25s/0.25s) Alternating Any T24 T19
T45  ↓ 970/800 @ 2Hz (0.25s/0.25s) Alternating Any T8 T19
T46  ↓ 800/1000 @ 0.875Hz (0.57s/0.57s) Alternating Any T24 T19
T47  ↓ 2400/2900 @ 2Hz (0.25s/0.25s) Alternating Any T24 T19
T48  ↓ 500/1200 @ 0.3Hz (1.67s/1.67s) Sweeping Any T24 T12
T49  ↓ 560/1055 @ 0.18Hz (2.73s/2.73s) Sweeping Any T24 T12
T50  ↓ 560/1055 @ 3.3Hz (0.15s/0.15s) Sweeping Any T24 T12
T51  ↓ 600/1250 @ 0.125Hz (4s/4s) Sweeping Any T24 T12
T52  ↓ 660/1200 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T53  ↓ 800/1000 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T54  ↓ 800/1000 @ 7Hz (0.07s/0.07s) Sweeping Any T24 T12
T55  ↓ 800/1000 @ 50Hz (0.01s/0.01s) Sweeping Any T24 T12
T56  ↓ 2400/2900 @ 7Hz (0.07s/0.07s) Sweeping Any T24 T12
T57  ↓ 2400/2900 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T58  ↓ 2400/2900 @ 50Hz (0.01s/0.01s) Sweeping Any T24 T12
T59  ↓ 2500/3000 @ 2Hz (0.25s/0.25s) Sweeping Any T24 T12
T60  ↓ 2500/3000 @ 7.7Hz (0.65s/0.65s) Sweeping Any T24 T12
T61  ↓ 800Hz Motor Siren Any T24 T12
T62  ↓ 1200Hz Motor Siren Any T24 T12
T63  ↓ 2400Hz Motor Siren Any T24 T12
T64  ↓ Simulated Bell Any T21 T12
Country specific or custom tone configurations and alarm frequencies are available upon request.
