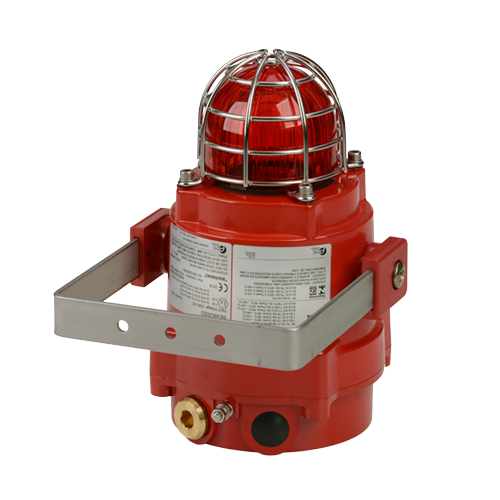

BExBG15 Explosion Proof Xenon Beacon 15 Joule
The flameproof BExBG15 xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
The BExBG15 15 Joule beacons robust construction enables installation in the harshest of environments. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.
Specification
| Energy: | 15 Joules (15Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 1,500,000 cd - calculated from energy (J) |
| Eff. Intensity cd: | 750 cd - calculated from energy (J) |
| Peak Candela: | 99,106 cd* - measured ref. to I.E.S. |
| Eff. Intensity cd: | 468 cd* - measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltages DC: | 24vdc; 48vdc |
| Voltages AC: | 115vac; 230vac |
| Ingress protection: | BG15D : IP66/67 BG15E : IP66 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish - anti-corrosion. |
| Colour: | RAL3000 Red (others available on request) |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Grounding stud: | M5 |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Tube life: | Emissions are reduced to 70% after 5 million flashes |
| Weight: | DC:2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs |
| *All candela data is representative of performance with clear lens at optimum voltage. | |
Current Consumption
| Version: | Voltage: | Current: | |
|---|---|---|---|
| 24V dc | 20-28V dc | 860mA | |
| 48V dc | 42-54V dc | 480mA | |
| 115V ac | 50Hz/60Hz | +/-10% | 360mA |
| 230V ac | 50Hz/60Hz | +/-10% | 170mA |
Part Codes
| Version: | Part code: | |||||||
|---|---|---|---|---|---|---|---|---|
| Product type: | BExBG15 | Explosion proof 15J Xenon Beacon | ||||||
| Type: | DP | Ex d, UV stable PC Colour Lens | ||||||
| Voltage: | DC024 DC048 AC115 AC230 |
24V dc 48V dc 115V ac 240V ac |
||||||
| Cable Entry Type:[e] Note: |
A B C D E F G |
2 x M20x1.5mm 2 x 1/2" NPT - adaptors 2 x 3/4" NPT - adaptors 2 x M25x1.5mm - adaptors 1 x 1/2" NPT - adaptor 1 x 3/4" NPT - adaptor 1 x M25x1.5mm - adaptor M20 stopping plugs for unused entries supplied |
||||||
| Adaptor/Stopping plug material: [m] |
B N S |
Brass Nickel Plated Stainless Steel |
||||||
| Bracket/guard matl: [s] | 1 2 3 4 |
A2 304 Stainless Steel A4 316 Stainless Steel A2 304 St/St with Equip. Tag A4 316 St/St with Equip. Tag (304) |
||||||
| Product version: [v] | A1 S1 |
Default - IECEx, ATEX, Ex EAC & INMETRO SIL2 - IECEx, ATEX, Ex EAC & INMETRO : 24Vdc only |
||||||
| Enclosure colour: [x] | R S |
Red RAL3000 Special - contact E2S |
||||||
| Lens colour: [y] | A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
||||||
Assemblies
Assemblies: The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.
Coding
- II 2G Ex d IIC T4 Gb Ta. -50°C to +50°C
- II 2G Ex d IIC T3 Gb Ta. -50°C to +70°C
- II 2D Ex tb IIIC T120°C Db Ta. -50°C to +40°C
- II 2D Ex tb IIIC T135°C Db Ta. -50°C to +55°C
- II 2D Ex tb IIIC T150°C Db Ta. -50°C to +70°C
Effective Candela lens colour factor
| Amber | Blue | Clear | Green | Red | Yellow |
| 0.70 | 0.24 | 1.00 | 0.25 | 0.23 | 0.93 |
