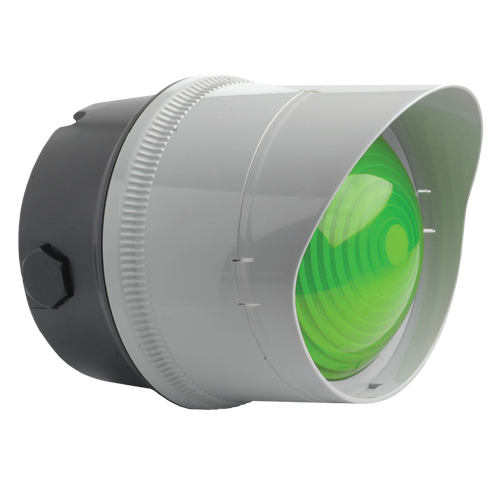

B450TLA Đèn Led 89cd LED Traffic Light E2S Vietnam
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Heavy Inductrial
Mr Vương
live:.cid.d22573c25f91d309
2-11-040
B450TDB Đèn giao thông sợ tóc, chế độ dự phòng ( Dual )
The B450 series of traffic light beacons are available in single E27 filament lamp, dual E14 filament lamp or high output L.E.D array versions.
Thông số kỹ thuật
| Nguồn sáng: | Đèn dây tóc kép (Dual) E14 |
| Công suất sáng: | 2 x 15W |
| Chức năng: | Sáng vĩnh cữu |
| L.E.D. màu: | Amber, Blue, Clear, Green, Red & Yellow |
| Hiệu ứng cường độ sáng cd: | 24 cd* (peak/effective intensity) |
| Loại kính (Lens): | Prismatic |
| Mounting: | Surface mount (Wall mount bracket available) |
| Entries: | 1 x 5-7mm push through grommet 2 x M20 cable entry |
| Dimensions: | ø140 x 177mm |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Terminals: | 0.5 to 2.5mm² |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| *Candela measurements representative of performance with clear lens at optimum voltage. | |
Part Codes
| Version: | Part code: | ||
|---|---|---|---|
| 12-250V | B450TDB250B/[x] | ||
| [x] = Lens colour: | A: Amber B: Blue C: Clear G: Green R: Red Y: Yellow |
||
| Note: Filament lamps not included. Must be ordered separately | |||
| Mounting brackets: | |||
| MB-B450T-S | Mounting bracket kit for a single B450 type unit. | ||
| MB-B450T-M | Mounting bracket kit for linked multiple B450 type units. | ||
| Note: Multiple unit connector is supplied with each product. | |||
| Filament lamp part codes: | |||
| Version: | Wattage: | Type: | Part code: |
| 12V dc | 15W | E14 | BB261215E |
| 24V dc | 15W | E14 | BB263015E |
| 48V dc | 15W | E14 | BB264815E |
| 115V ac | 15W | E14 | BB2613015E |
| 230V ac | 15W | E14 | BB2623515E |
| Note: Filament lamps to be ordered separately. | |||
